screen-icon_64.pngScreen

Deskbar:Preferences
Location:/boot/system/preferences/Screen
Settings:~/config/settings/system/app_server/workspaces
~/config/settings/kernel/drivers/vesa - Only when running in VESA mode.
~/config/settings/Screen_data - Stores the panel's window position.

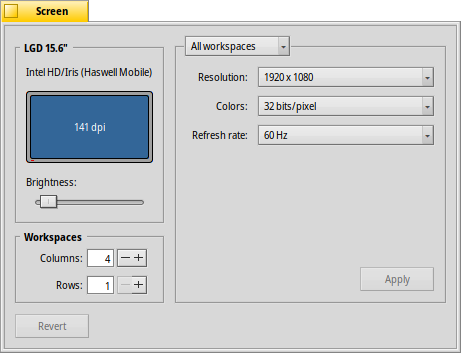

Each of your workspaces can have its own resolution, color depth and refresh rate.


The top menu specifies if your changes are applied only to the current or to all workspaces. Depending on your graphics card, the other menus contain all supported resolution, color depth and refresh rate settings.

After clicking on Apply, the graphics mode is changed and an alert appears, asking you to keep or cancel the changes. If you don't answer that alert, the graphics mode reverts after 12 seconds to the previous setting. Maybe you couldn't see the alert because your monitor didn't support the setting.

There's a key combination that always works, not only when the Screen preferences are open: SHIFT CTRL ALT ESC sets a fall-back video safe mode. Handy if your monitor doesn't report its capabilities correctly and your settings result in a distorted or black screen. Here too, an alert pops up and if you do nothing for 12 seconds or press ESC you'll revert back.

On the left side of the window, you see a representation of your screen with the manufacturer and model it reports and its resolution in dots per inch (dpi). It also shows the name of graphics card if it's supported by a driver. Otherwise it says "VESA", the quick fallback solution that works with pretty much every hardware.

While Haiku's VESA mode performs very well, you may experience some limitations. You may not be able to drive your widescreen display in its native resolution, resulting in a somewhat blurred picture. There may also be limitations with regard to available color depths and refresh rates.

Clicking on the screen representation opens the Backgrounds preferences.

Below is a slider to set the screen's Brightness, if you're running on a notebook and the graphics driver supports it. In Terminal, screenmode --help shows how to control brightness and other options from the command line.

To the bottom left you can set the number of workspaces and arrange them in columns and rows.

Revert brings back the setting that was active when you started the Screen preferences.
