Attributes

Attributes are data fields that belong to a file but aren't part of that file, e.g. they are not computed into the file size and can be copied or changed without touching the file itself. The system uses these attributes to store e.g. file size, file type or date of the last modification. This is similar to other operating systems and their filesystems.

What's different is that you can add any kind of attribute to any file and display it or make it editable in a Tracker window. You just have to define the kind of attribute you want to add to a file type (e.g. string, integer or time) and give it a name and description.

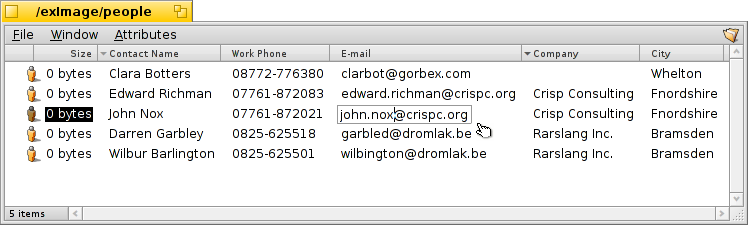

The file itself doesn't even need any contents at all. Take a look at these People files for example:

As you can see, these are all 0-sized files with attached attributes, the E-mail attribute of "John Nox" being edited right in Tracker.

If you index these attributes, as People, Email or audio files are by default, they are also searchable with Haiku's fast query system.

Attributes in Tracker

Attributes are displayed quite similar to a database or spreadsheet. Using Tracker you can choose which attributes to display (columns) and sort file listings (rows) accordingly.

To do this, open a Tracker window, click on the Attributes menu, and select the attributes you want to display. Alternatively, simply right-click onto a column heading and mark the items in the context menu. You can rearrange the columns by a simple drag & drop of the column heading. Moving a column out of a window, is a fast way to get rid of columns you don't need.

Double-click on the line between two attributes in the heading to automatically resize a column to its optimal width.

Click on a column heading to toggle the sorting order from ascending to descending. You can establish a secondary sort order by pressing the SHIFT key while clicking on a column heading. You can sort your People files by company and within that order sort by contact name, for instance. See the above screenshot as an example. The secondary sort order is marked by a lighter colored indicator beside the heading.

Editing these attributes is as simple as renaming a file: Either click on an entry or press ALT E and move between the attributes with TAB and SHIFT TAB. ESC leaves the editing mode without applying the changes.

Attributes in Terminal

If you prefer to use the commandline or plan to work with many files using scripting, there are several commands for controlling attributes from Terminal.

More information on these commands and their options can be found by typing the command name followed by "-h" or "--help".

listattr

listattr lists a file's attributes, but by default doesn't show the contents of the attributes. For that, you need to add the parameter -l or --long.

usage: listattr [-l|--long] 'filename' ['filename' ...]

From our screenshot example above:

 ~/people ->listattr Clara\ Botters
File: Clara Botters
   Type         Size                 Name
-----------  ---------  -------------------------------
MIME String         21  "BEOS:TYPE"
        Text         14  "META:name"
        Text          6  "META:nickname"
        Text          1  "META:company"

        Text         18  "META:address"
        Text          8  "META:city"
        Text          1  "META:state"
        Text          1  "META:zip"
        Text          1  "META:country"

        Text          1  "META:hphone"
        Text         13  "META:wphone"
        Text          1  "META:fax"
        Text         19  "META:email"
        Text          1  "META:url"

        Text          5  "META:group"
    Raw Data         20  "_trk/pinfo_le"

131 bytes total in attributes.

Besides all the "META:*" attributes that hold the contact's information, there are two attributes that are managed by the system:

• BEOS:TYPE holds the file type as a MIME string, here "application/x-person". It determines the default icon and the application that opens the file when you e.g. double click it.

• "_trk/pinfo_le" is the attribute with which Tracker keeps track of a file's icon position.

catattr

catattr displays the contents of a specific attribute of a file.

usage: catattr [--raw|-r] attr_name file1 [file2...]

Again our example:

 ~/people ->catattr META:city Clara\ Botters
Clara Botters : string : Whelton

addattr

addattr adds an attribute to a file and/or fills it with a value.

usage: addattr [-t type] attr value file1 [file2...]
    or: addattr [-f value-from-file] [-t type] attr file1 [file2...]

         Type is one of:
                 string, mime, int, llong, float, double, bool, icon, raw
                 or a numeric value (ie. 0x1234, 42, 'ABCD', ...)
         The default is "string"

So, say dear Clara took a job with the multi-national Barkelbaer Inc., you fill the formerly empty "Company" attribute with that data (which is of type "string"):

 ~/people ->addattr -t string META:company Barkelbaer\ Inc. Clara\ Botters

rmattr

rmattr completely removes an attribute from a file.

usage: rmattr [-p] attr filename1 [filename2...]

Though in all practicality it would be enough to just not fill the "Fax" attribute, you can completely remove it from Clara's file by typing:

 ~/people ->rmattr META:fax Clara\ Botters

copyattr

copyattr copies attributes from one or more files to another. By default, the actual contents of the file is not copied.

usage: copyattr <options> <source> [ ... ] <destination>

If you do want to copy the attributes plus the data of the file itself, you can add the option "-d" or "--data".
